The TXS uses a DC 10.8V 2.6 Ah motor and with a two speed transmission: 0-400 and 0-1200 RPM. This gives the TXS more than enough power for normal drilling and installations. The drill comes with two batteries, which can be charged to 80% in 20 minutes and or full in about 30 minutes.

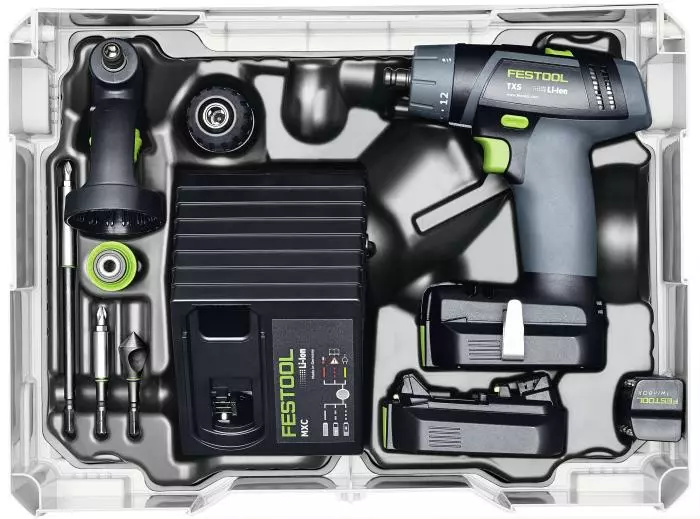

The basic drill comes with an MXC charger, two 2.6 Ah Lithium-Ion batteries, a precision keyless drill chuck (1/32″ – 5/16″), the quick change Centrotec chuck, a PH 2 bit, BH 60 CE bit holder and belt clip. Everything comes packed in a fitted Systainer. The Drill Set comes with all of the above plus a right angle chuck as well.
All TSX drills, and batteries are covered by Festool’s excellent 3 year warranty.
| Motor Type | DC Motor |
| Battery Voltage / Capacity | 10.8 V / 2.6 Ah Li-Ion |
| RPM (Low / High) | 0 – 400 / 0-1,200 |
| Chuck Capacity | 1/32” – 3/8” (1.0 – -10 mm) |
| Max. Drill Diameter (Steel) | 5/16” (8 mm) |
| Max. Drill Diameter (Wood) | 15/32” (12 mm) |
| Torque Setting Range | 1.7 – 30.09 in lbs (0.2 – 3.4 Nm) |
| Max. Torque in Steel | 141.6 in lbs (16 Nm) |
| Max. Torque in Wood | 88.5 in lbs (10 Nm) |
| Weight | 1.98 lbs (0.9 kg) |
| Systainer | SYS 1 TL |
Note: The TXS uses batteries, charger and right angle chuck that are compatible with the CXS but not with larger drills. The TXS and CXS keyless and Centrotec chucks are compatible with Festool full sized drills and vice versa.
